Specifications
Material | Aluminum |
Metal thickness | 0.3-0.4 mm |
Equipment | Grille GL15 – "MALE", "FEMALE", L-profile, Frame – T15 Premium |
Grid dimensions (mm) | 600x600 |
Profile height | 37 mm, 47 mm |
Color version (stock) | White, metallic, black |
Base width (mm) | 15 |
Cell (mm) | 50x50, 60x60, 75x75, 86x86, 100x100, 120x120, 150x150, 200x200 |

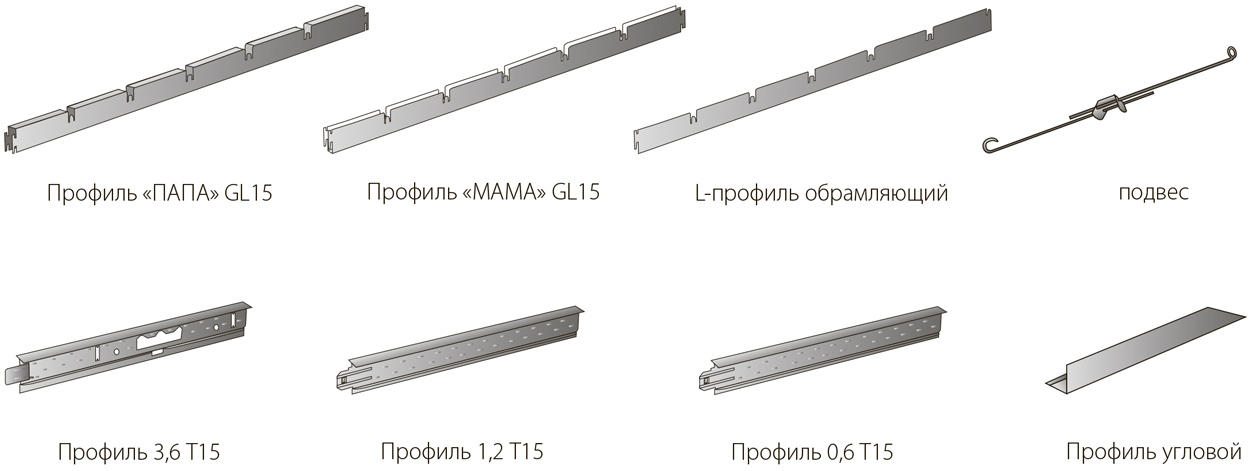

Equipment
Consumption rate per 1 m2 |
Cell | 50x50 | 60x60 | 75x75 | 86x86 | 100x100 | 120x120 | 150x150 | 200x200 |
Flow rate | 43,34 | 36,68 | 30,02 | 26,68 | 23,34 | 20,02 | 16,68 | 13,34 |

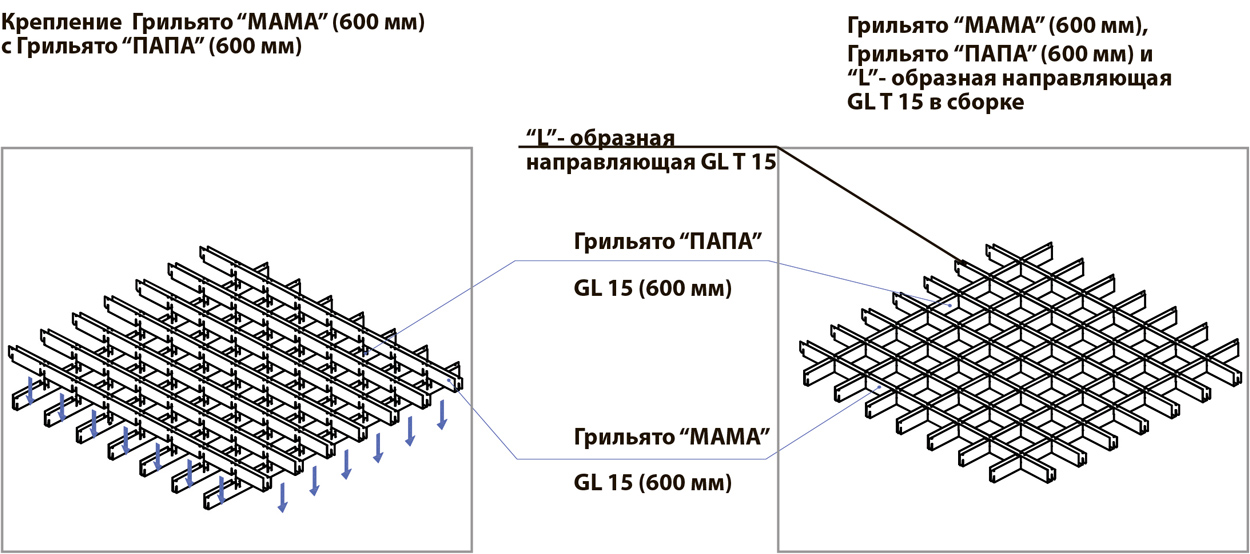

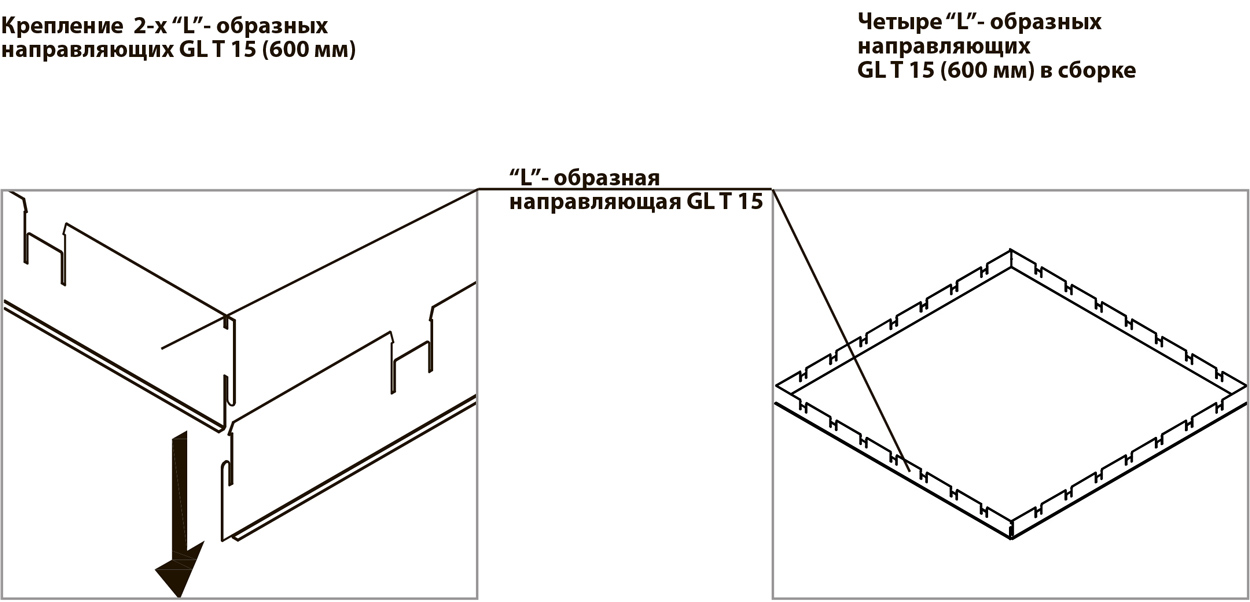

Mounting the GL 15 cassette
