Made of galvanized steel.It can be made in any color according to the RAL system upon request.
RAL 9003
RAL 9006
RAL 9011
RAL 1004
Other
Prices and availability are communicated upon request

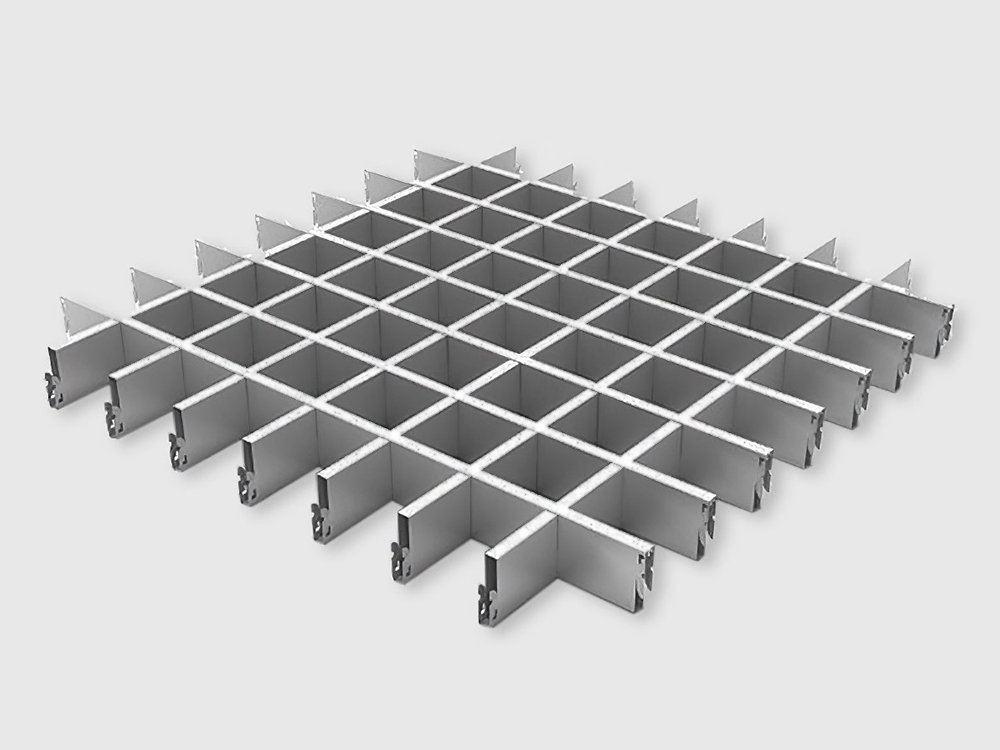

Grillato is a suspended ceiling with a cellular structure. Grilles are made of U-shaped profiles: "MALE" and "FEMALE", which in turn are mounted on U-shaped rails with the following dimensions: 2.4 m – Main rail, 1.2 m – Cross 1.2 rail, 0.6 m – small Cross 0.6 rail.
Airports, railway and bus stations, shopping centers and exhibition halls, catering facilities, hotels, concert halls, cinemas, medical institutions, educational institutions, etc.
— creates an excellent combination with the other suspended ceilings; — high degree of corrosion resistance; — lightweight design; — thanks to its structure, the lattice ceiling contributes to the maximum smoke evacuation in case of fire in the room; — the ceiling is resistant to water leaks..
Made of galvanized steel.It can be made in any color according to the RAL system upon request.
RAL 9003
RAL 9006
RAL 9011
RAL 1004
Other
Цены и наличие по запросу
Grillato is a suspended ceiling with a cellular structure. Grilles are made of U-shaped profiles: "MALE" and "FEMALE", which in turn are mounted on U-shaped rails with the following dimensions: 2.4 m – Main rail, 1.2 m – Cross 1.2 rail, 0.6 m – small Cross 0.6 rail.
Airports, railway and bus stations, shopping centers and exhibition halls, catering facilities, hotels, concert halls, cinemas, medical institutions, educational institutions, etc.
— creates an excellent combination with the other suspended ceilings; — high degree of corrosion resistance; — lightweight design; — thanks to its structure, the lattice ceiling contributes to the maximum smoke evacuation in case of fire in the room; — the ceiling is resistant to water leaks..
Specifications
| Material | aluminum |
| Metal thickness | 0,3-0,4 mm |
| Grid dimensions (mm) | 600x600 |
| Profile height | 30 mm, 40 mm, 50 mm |
| Color version (stock) | White, metallic, black, matte metallic |
| Profile width | 10 mm |
| Cell | 30x30, 50x50, 75x75, 100x100, 150x150, 200x200 |

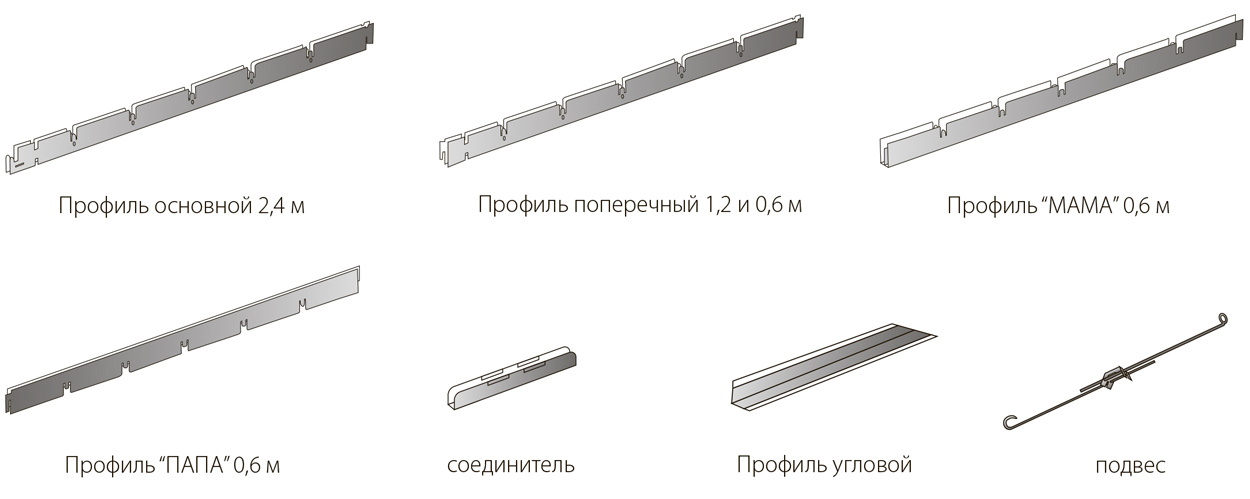

Equipment
Consumption rate per 1 m2
| Cell | 30x30 | 50x50 | 75x75 | 100x100 | 150x150 | 200x200 |
| Flow rate | 66,7 | 40 | 26,7 | 20 | 13,34 | 10 |

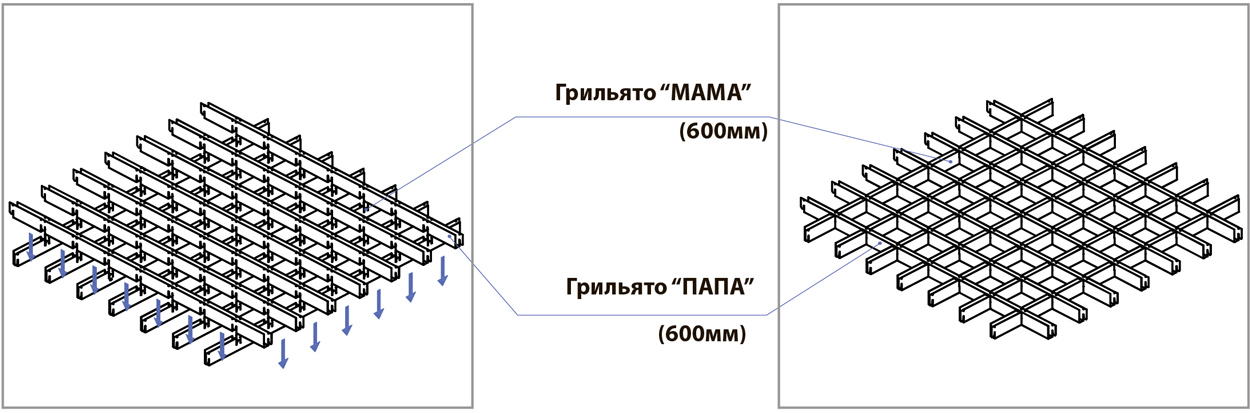

Assembly diagram "MALE" "FEMALE"

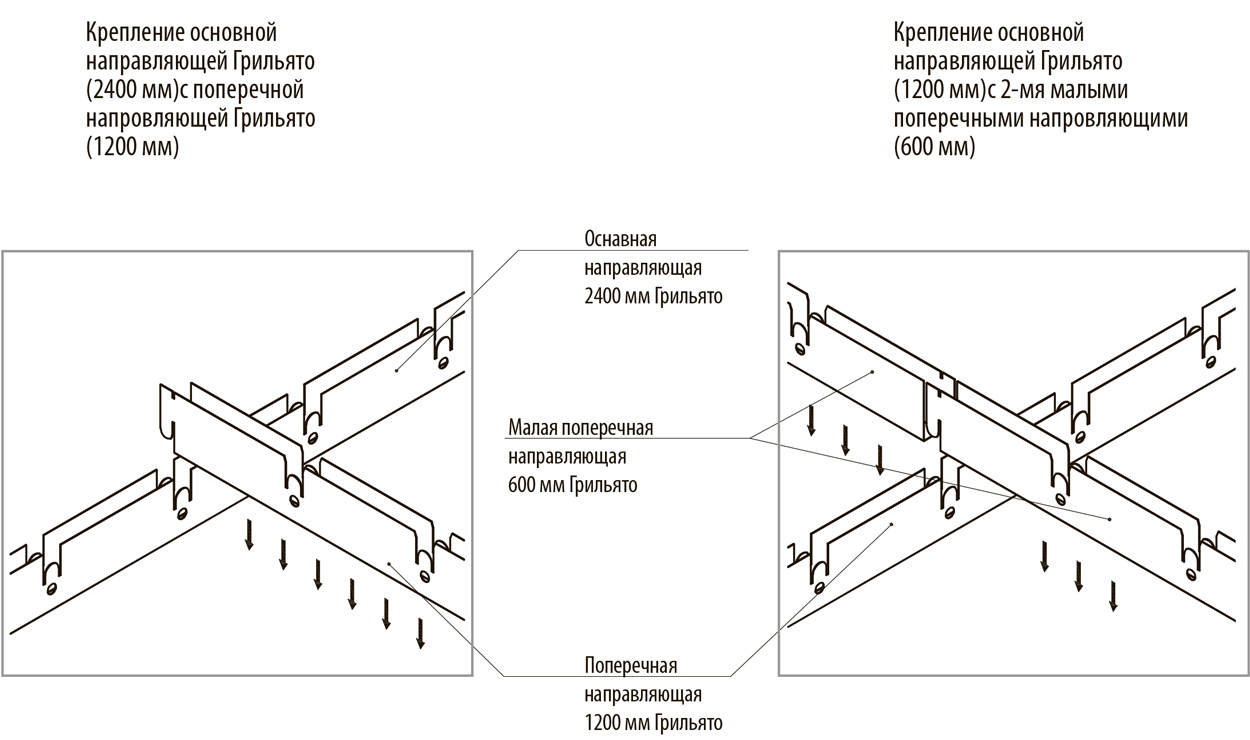

Assembly diagram for guide profiles 2.4 m, 1.2 m, 0.6 m.
